USS Nimitz CVN-68 by Ted Taylor

Brand: Trumpeter
Scale: 1/350
Modeler: Ted Taylor
AddOns: -

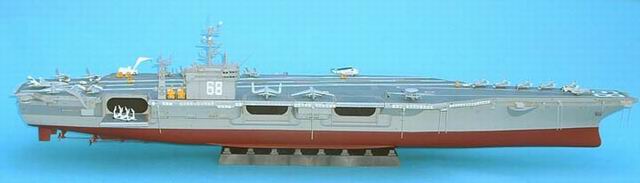

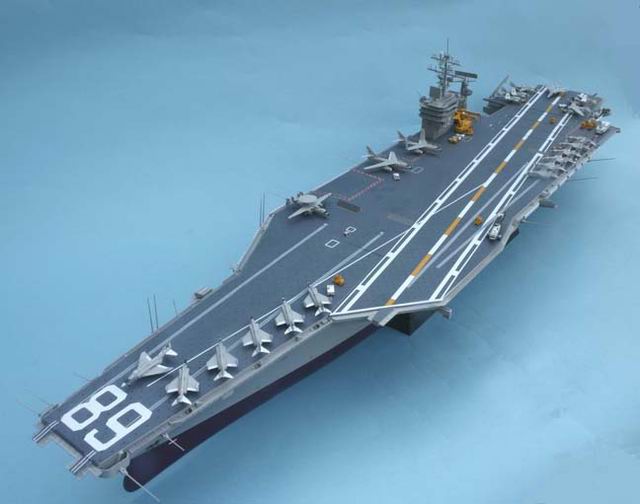

This is one of my “easy build” class of kits and it is big, like 38 inches long. The hull comes as two sections, upper and lower, for ease of making a waterline model.

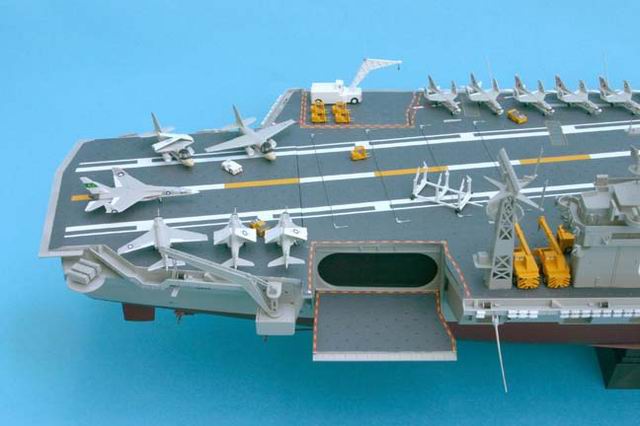

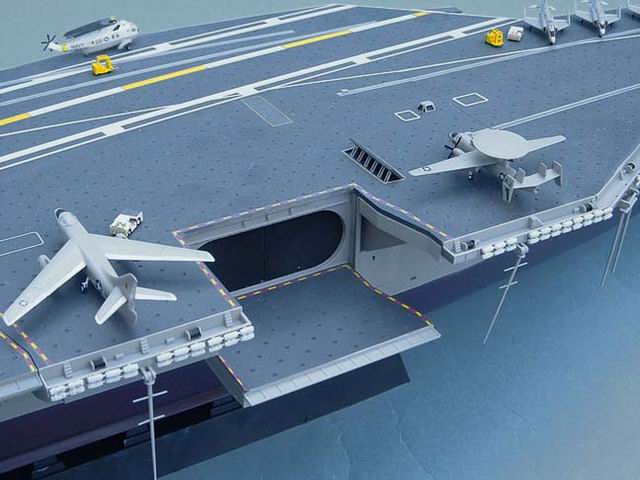

The upper hull has metal strips for bracing as a waterline model and just lies nicely on the lower half if you prefer, with just a hint of cement, applied from the inside, the whole lot is fixed permanently. There is a full hangar deck and four moveable lifts and openings to this deck but should you decide not to do the interior there are closures for the openings.


Click on the images to enlarge!

There are a few minor cuts to be made before construction begins depending on your requirements. Once the hull is ready it is just a matter of adding details before the flight deck goes on, The deck is nicely detailed and is in three parts which fit together reasonably well for such large pieces, the detailing is nicely done with tie down spots engraved on the surface, optional position blast deflectors and there are loads of tiny antennas to be added to the edges, these are the parts that look like fishing rods hanging over the sides on the real vessel.

One small point here these are very delicate and they have a number of feeds to each one on the frames so require very careful removal to avoid damage.
There are some missile defense systems, a huge crane and lots of tiny life rafts all making quite a nice interesting scene.

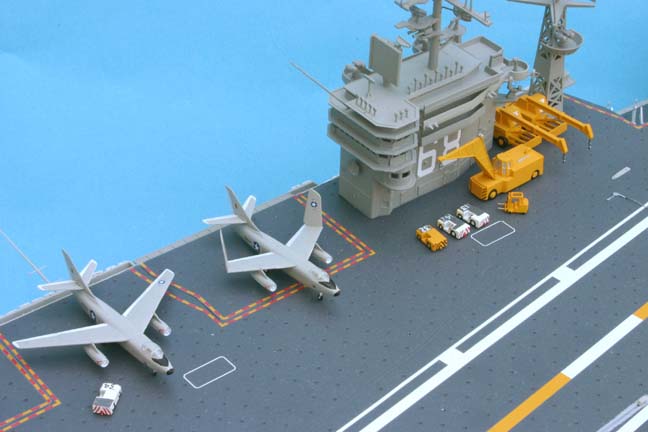

The island is a free standing model in it’s own right and if you don’t cement it to the deck then the model can be kept in it’s own box, details are nice and look accurate with various decks for the bridge and vultures row along with some rather over scale radar and aerials which might benefit from an etched brass set if any are available as would the main radar mast which though nicely done is a little heavy on detail.

On deck, the ship is depicted as it was in 1975 when the aircraft were launched with cat strops and as such she has the three extensions to the ends of the launch rails which are not there today, decals are supplied for the deck markings but not all of them are used at one time, your research will show which are needed, even the 68 bow number was painted differently at various time so be aware.


Click on the images to enlarge!

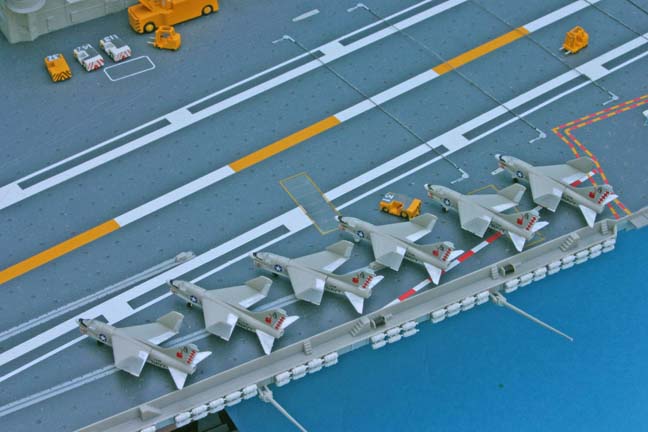

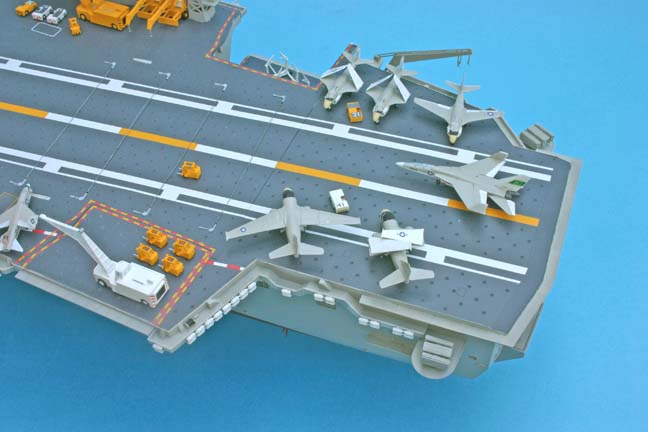

Now the good news, you get lots of deck machinery, four mobile cranes, eight tow trucks and eight fork lift trucks to handle all the aircraft which include, 1x SH-3 sea king, 1x RA-5 Vigilante, 1x E-2C Hawkeye, 2x A-3s, 2x S-3 Vikings, 3x A-6E Intruders plus six each of F-4J Phantoms and A-7E Corsairs. Each comes on a frame with three colour plastic, grey black and clear and there are folding wings separate wheels etc. etc. took for ever to build but then the result really sets the ship off.
Decals are provided for each of these aircraft, full markings, the only thing missing are the pilot’s names, it took me longer to do the aircraft than the rest of the whole ship, the time involved in painting each one and then the decal application for such tiny items nearly had me clearing the decks a few time but I persevered and I am pleased with the model now.


A lot of model for the money, I’ll recommend it to any ship enthusiasts

Ted Taylor
March 2005



Photos and text © 2005 by
Ted Taylor
